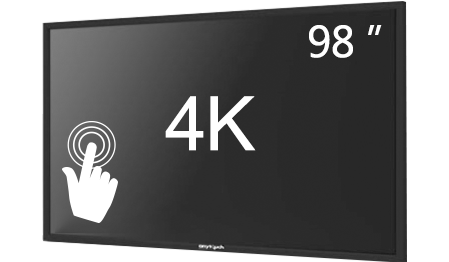

Any Touch TV98
Our Touchscreen Display

Unlike typical consumer TV or monitor.

Unique interactive display design, which not only brings customers a stronger visual impact, also brings customers unprecedented touch experience.

4K Resolution

Bring you to real world

Buying a 4K TV gives you access to future connectivity specs and future visual specs that will come in handy as broadcasters catch up to the new technology

Learn More About 4K
https://www.idin9.com/wp-content/themes/salient/css/fonts/svg/basic_elaboration_message_happy.svg
Ease to use

Auto on after power on or signal inputting. Standard signal interface (plug-and-play).

https://www.idin9.com/wp-content/themes/salient/css/fonts/svg/arrows_glide.svg
Unique Interactive Display

No matter how hard you look, you’ll never find better.

https://www.idin9.com/wp-content/themes/salient/css/fonts/svg/basic_globe.svg
Perfect Various Operating System Supported

Windows XP /7 /8, Android , Linux, Mac OS X.

https://www.idin9.com/wp-content/themes/salient/css/fonts/svg/basic_picture_multiple.svg
Sleek Design

Wide viewing angles and Clear, Crisp images.

Advantage

Amusement and Entertainment Equipment, KIOSK, Self service Terminal and Interactive Digital Signage, VTM and Way-finding machine, etc.

Ultra High quality LCD panel

Adopts energy saving E-LED, clear and Ultra High Definition(3840 x 2160)LCD panel

Durable and Professional Design

All metal structure, sleek & elegant design, that makes the product durable and stable

Extended multi-touch gestures

Support Win7, TUIO, Flash TUIO etc

Internal Intel OPS Pluggable Computer

No additional space, high-degree system integration. Good thermal design to ensure the stability of PC

Multi-Touch Experiences

Support up to 6/10/32 touch points simultaneously. Suitable for medium or large size touch monitors

Flexible Installation

VESA mount, heavy-duty stand gives you a choice of fixed or desktop mounting

Infared Touchscreen Display

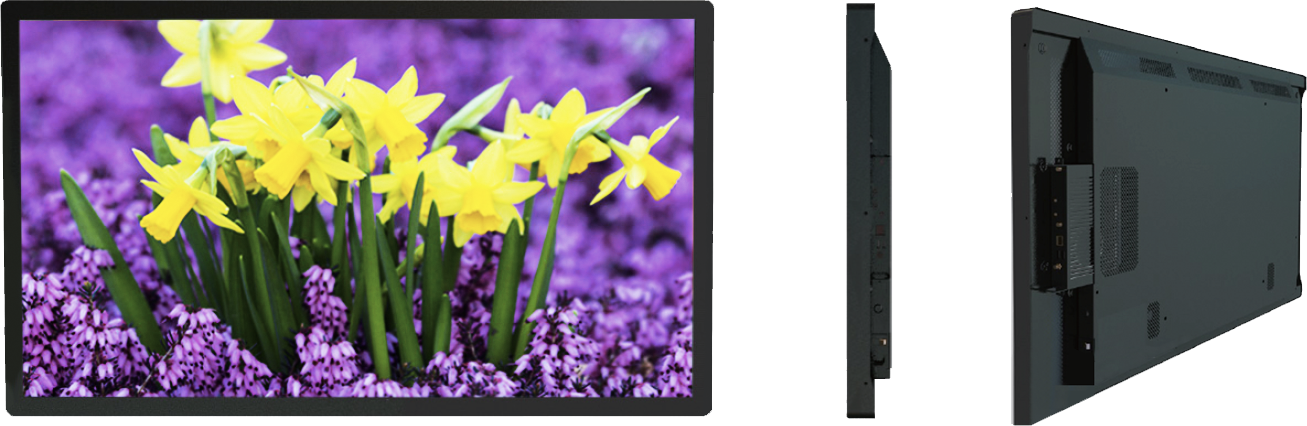

LCD 98 Front Rear Back

Specification

98" LED SPECIFICATION

>> LED Panel << >> OSD Function <<
Backlight LED OSD Control Push Button, IR Remote Controller
Brightness 500 cd/m2 OSD Language English, Chinese
Contrast Ratio 1300:01:00
Viewing Angle H:178° / V:178° >> Electrical Parameters <<
Response Time 5 ms (GTG) Power Supply AC in: AC 100V ~ 240V (50/60 Hz)
Supported Colors 1.06B Colors Power Consumption ≤ 490W (typ.)
Resolution 3840 x 2160 (16:9) Standby ≤2W (typ.)
Display Frame Rate 120Hz Internal Speaker 2x 8Ω/5W
Input Resolution 1920 x 1080 @ 60Hz (Analog)
3840 x 2160 @ 30Hz (HDMI1.4) >> Environmental Parameters <<
Connectivity 3xHDMI/2xVGA Operation 0 °C ~ 40 °C, 90% RH
Storage -20 °C ~ 60 °C, 90% RH
>> Mechanical << >> Optional <<
Dimension 2269 x 1324 x 109.7 mm Touch Points 6 points, 10 points, 32 points
Package Dimension Other Metal Stands, Wall Mount Bracket
Weight(Approximate) 190 kg / 260 kg OPS PC fully support YES
Wall Mount Type VESA,MIS-F,800×400,Y,8,90

98" Touch SPECIFICATION

GLASS 5mm Tempered Safety Glass (Optional for AG or AR) Touch Accuracy the entire touch sensitive area: +/-3mm, reported touch resolution(USB): 32767×32767
Touch Points 6/10/32(Simultaneous) Response Time <15ms
Touch Technology Infrared Connection USB 2.0(Type-B)
Touch Activation Force No pressure required Multi-touch Protocol Supported Win 7, TUIO, Flash TUIO
Touch Method finger, gloved hand or any other pointer minimum radius 8mm Operating Systems Supported Win XP, Vista, Win 7,Win 8, Android, Linux, Mac OS X
Calibration four-point calibration

Datasheet

An Infrared Touchscreen Display uses an array of X-Y infrared LED and photodetector pairs around the edges of the screen to detect a disruption in the pattern of LED beams. These LED beams cross each other in vertical and horizontal patterns. This helps the sensors pick up the exact location of the touch. A major benefit of such a system is that it can detect essentially any opaque object including a finger, gloved finger, stylus or pen.

For more information about each product model’s specification,
please download from link below the picture. Or visit Any-touch website.

P-CAP Touchscreen Display

Projected Capacitive Touch Screens

PCAP touch screen software is typically used in smart phones and tablets, but can also be used for much larger screens. It works through the use of a conductive grid that recognizes changes in its electromagnetic field by the touch of your finger. Projected capacitive touch screen technology does not require a bezel. They detect only fingers or styluses. PCAP displays very accurate, and capable of up to 60 touch points.
cr: https://digitaltouchsystems.com



For more information about each product model’s specification,
please download from link below the picture. Or visit Any-touch website.

Embedded P-CAP Touchscreen Display

Embedded P-CAP Touch Screens

WTM156TR is an open frame LED multi-touch touch monitor based on P-CAP touch technology. It applies flat panel design and offers wide viewing angles and clear, crisp images. Its slim design makes self-service equipment more aesthetic, and its various of installation ways make components integrating much more easier.

Typical Application:
Amusement and Entertainment Equipment, KIOSK, Self service Terminal and Interactive Digital Signage, etc.



For more information about each product model’s specification,
please download from link below the picture. Or visit Any-touch website.
